AE12+ and AE21: Low-cost, sustainable, for large components

New: PMMA materials (acrylic glass) available from Binder Jetting

3D-Druck Plexiglas Bauteil Binder Jetting PMMA AE21
3D gedrucktes Bauteil PMMA Pro-Material  Binder Jetting

From now on you can find in the Jellypipe Store the PMMA materials AE12+ and AE21, processed with the binder jetting technology.

The Plexiglas 3D printing materials are a good complement to comparable plastics from SLS, MJF or SAF and are particularly suitable for very large components: The maximum build space for additive manufacturing technology binder jetting for plastics is 850 x 450 x 480 mm. In addition, depending on the geometry and the number of pieces ordered, the components are less expensive than comparable plastics from the other technologies.

The sustainability of polymethyl methacrylates (acrylics) deserves special mention - 100% of the unused powder can be reused after printing.

The main properties of the materials:

PMMA AE21PMMA AE12+
  • High level of detail
  • Dense surface (porosity < 1%)
  • No thermal distortion
  • Good mechanical properties
  • High level of detail
  • Excellent edge sharpness
  • No thermal distortion
  • Color: bright, consistent white



Design for binder jetting and maximum installation space

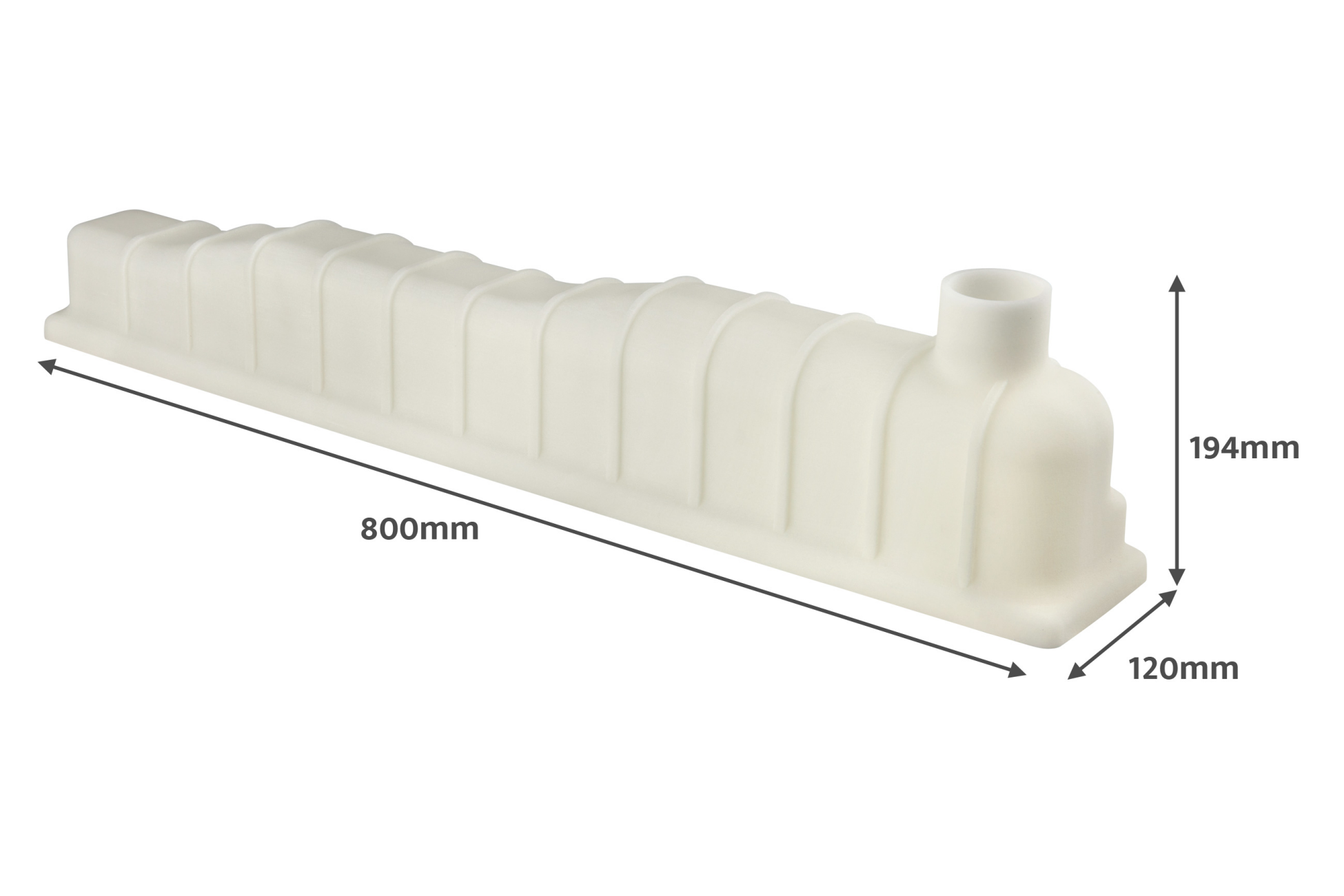

3D-Druck PMMA Pro-Material Binder Jetting grosses Bauteil 2
3D-Druck PMMA Pro -Material Binder Jetting grosses Bauteil 1

The maximum installation space for Binder Jetting for plastics is 850 x 450 x 480 mm. Particularly large components can be printed. In addition, no support structures are required.

When designing, please note the information such as wall thicknesses, etc. on this page: Binder Jetting

Technical properties of Plexiglas 3D printing materials

PMMA AE12+ (polymethyl methacrylate)

  • Color: matt white
  • Tensile strength (DIN EN ISO 527-1): 20 MPa
  • Modulus of elasticity (DIN EN ISO 527-1): 1200 MPa
  • Tensile elongation (DIN EN ISO 527-1): 3%
  • Flexural strength: 25 MPa
  • Heat deflection temperature (DIN EN ISO 75-2 method A 1.80MPa): 56 °C

PMMA AE21 (polymethyl methacrylate)

  • Color: greenish translucent
  • Tensile strength (DIN EN ISO 527-1): 38 MPa
  • Modulus of elasticity (DIN EN ISO 527-1): 2460 MPa
  • Tensile elongation (DIN EN ISO 527-1): 1.9%
  • Flexural strength (DIN EN ISO 178): 52 MPa
  • Flexural elongation (DIN EN ISO 178): 3%
  • Heat deflection temperature (DIN EN ISO 75-2 method A 1.80MPa): 56 °C

Post-processing methods available for the 3D printed PMMA materials

The 3D printing Plexiglas components are powder blasted and glass bead blasted after printing (standard). The following post-processing methods are available upon request:

  • Painting
  • Coloring
  • Chemical smoothing (surface quality)



Photos: Material AE21

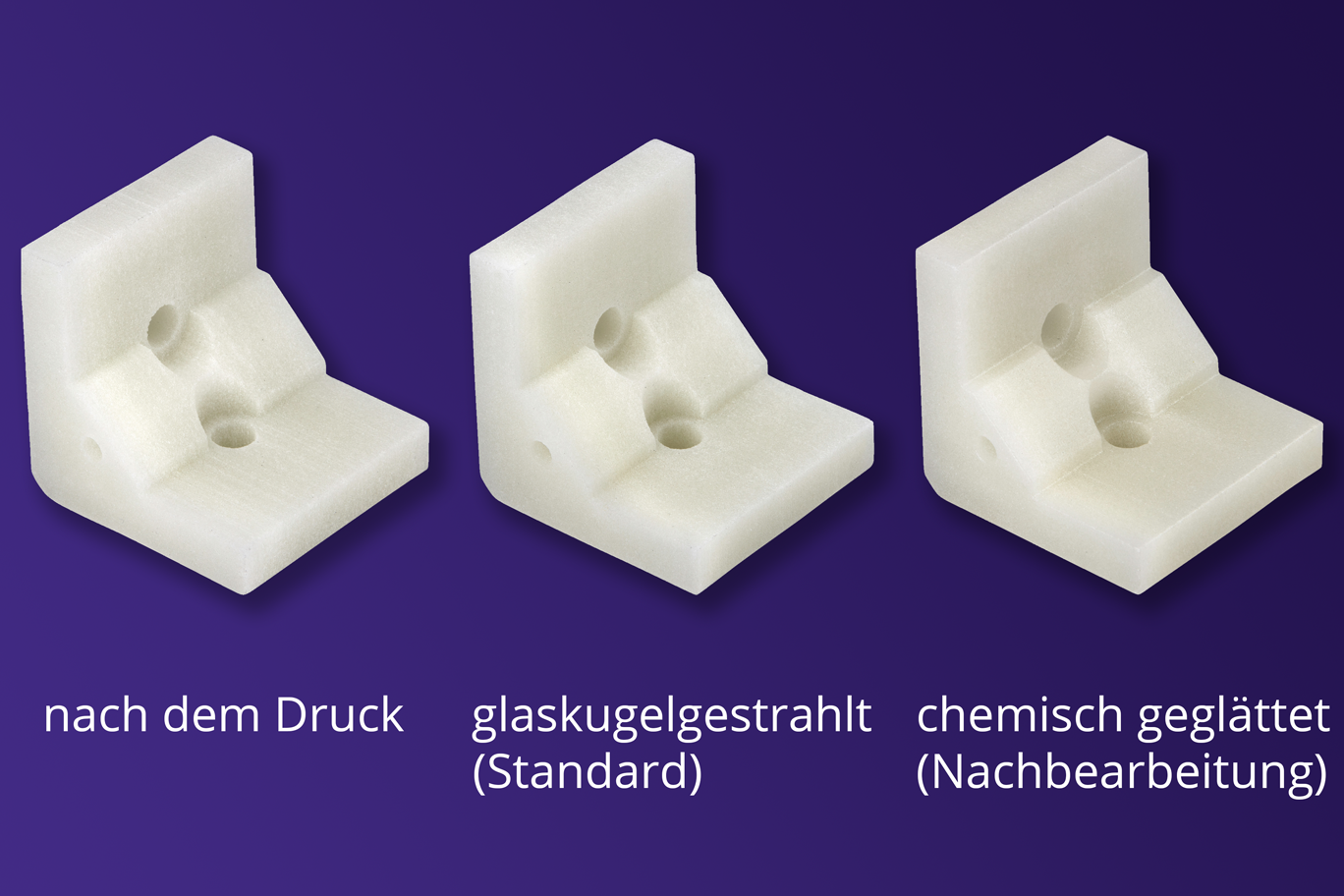

3D gedruckte PMMA Pro Bauteile - Binder Jetting

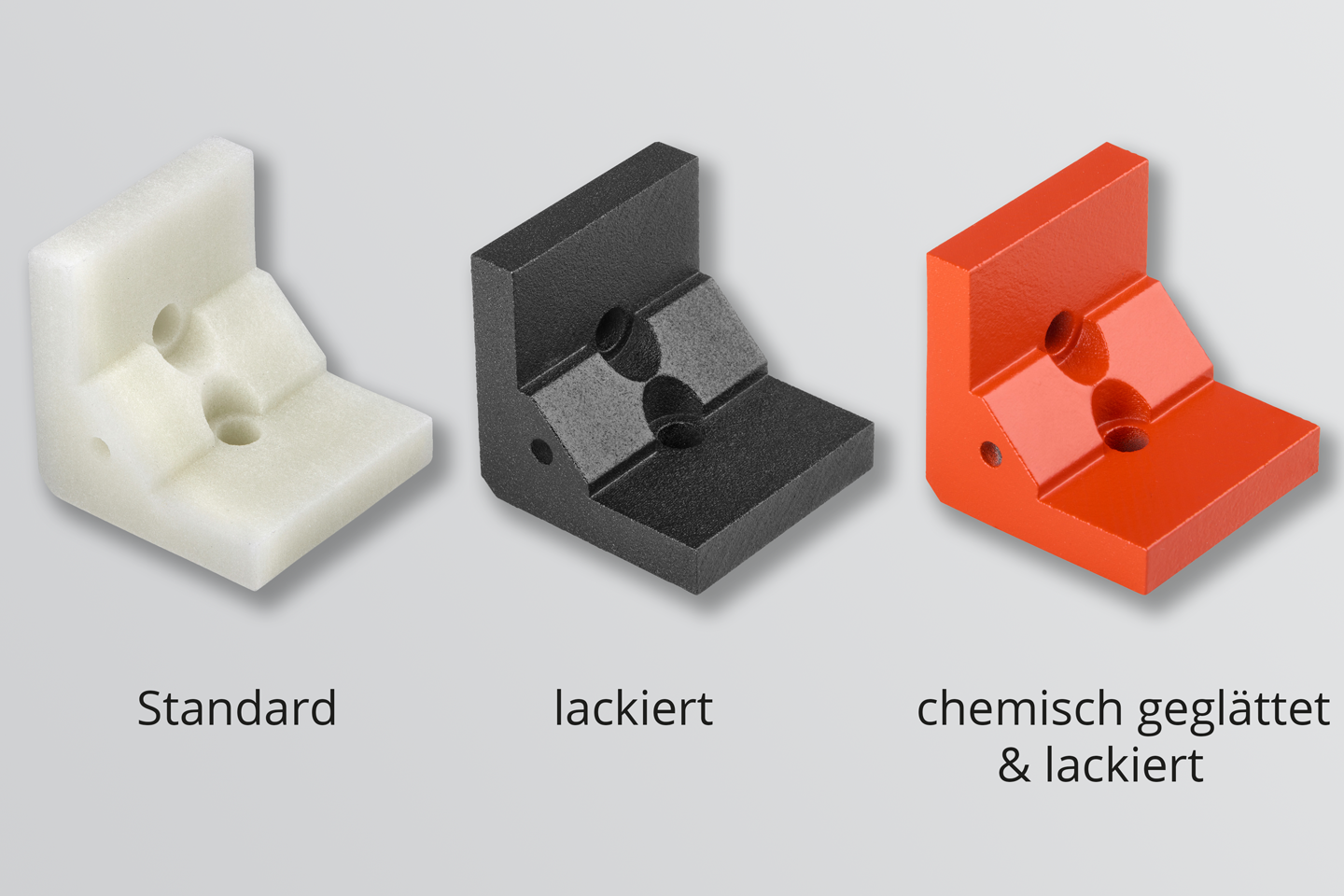

3D-Druck PMMA Pro Binder Jetting Kunststoff Bauteile chemisch geglättet und gefärbt

What can the 3D printing Plexiglas materials be used for?

The materials are suitable for a wide range of applications:

PMMA AE21PMMA AE12+
  • For large components (installation space 850 x 450 x 470 mm)
  • High geometrical freedom, as no support structures are required
  • Prototyping
  • Test gauge and precoating construction
  • Special machine construction
  • For mechanical components and housings
  • Components are translucent with low wall thickness and suitable for applications with illuminants
  • For large components (installation space 850 x 450 x 470 mm)
  • High geometrical freedom, as no support structures are required
  • Architectural and trade show models (high detail accuracy)



Photos of components made of the PMMA materials:

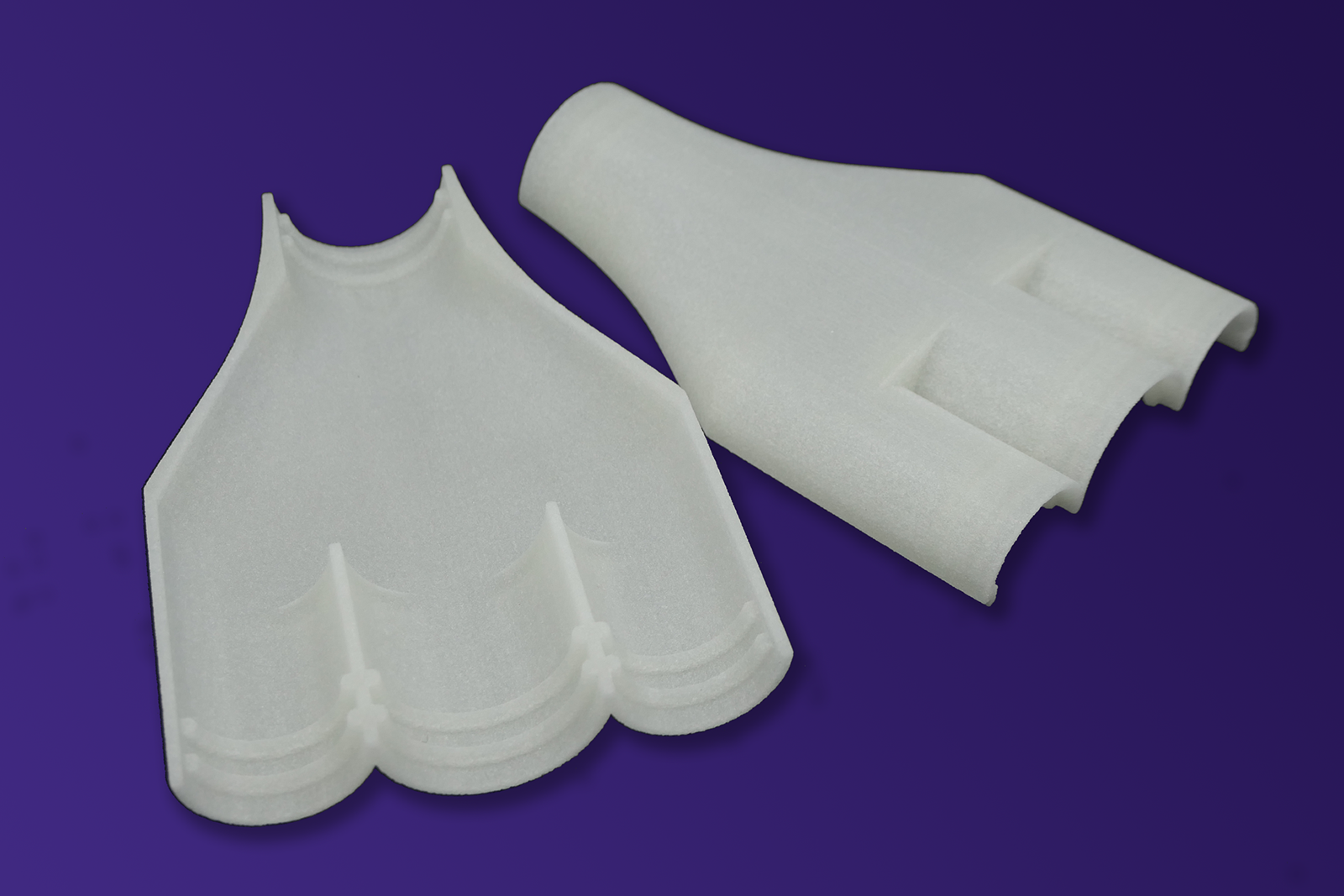

3D-Druck Plexiglas Bauteil Binder Jetting PMMA AE21

PMMA component AE21

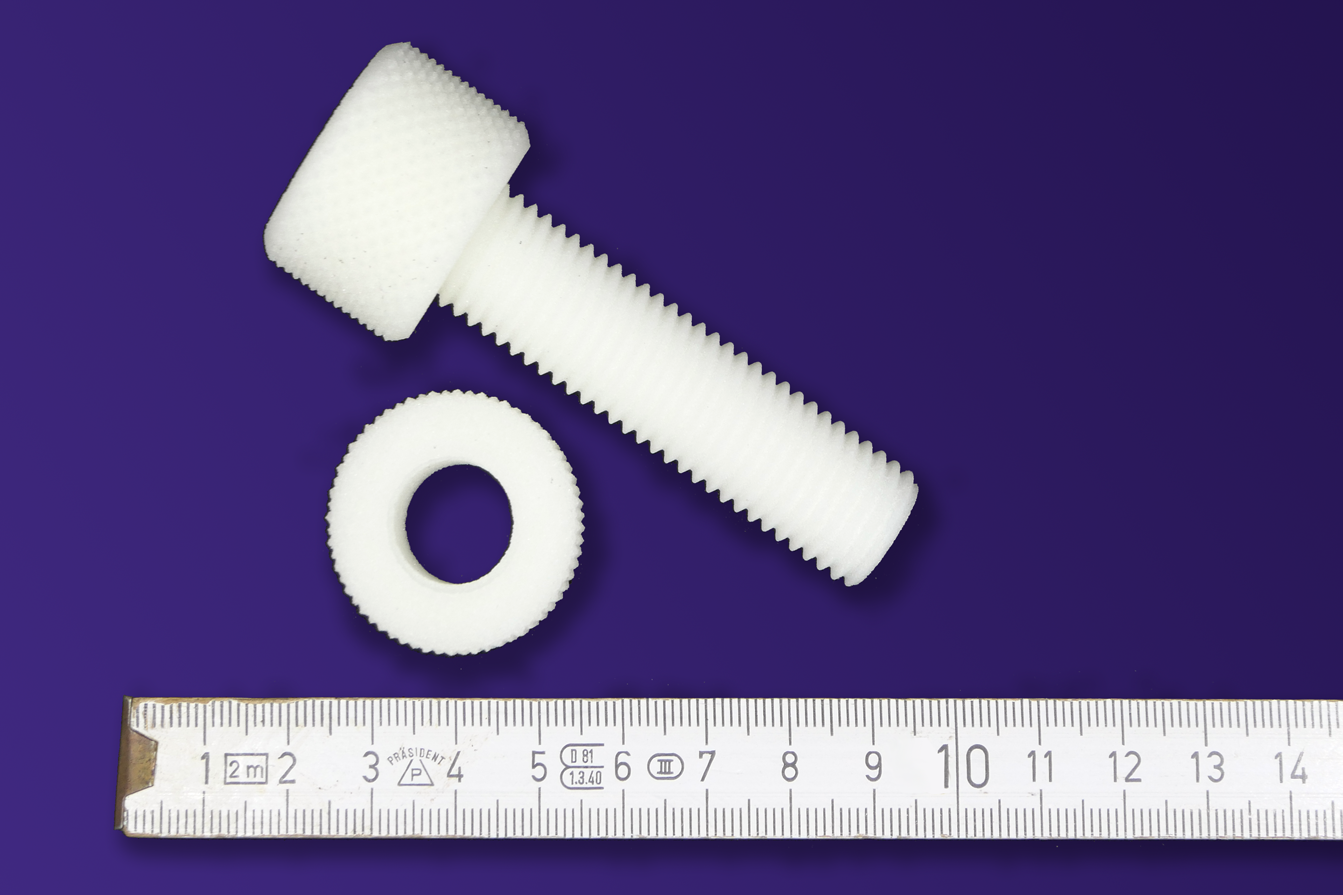

3D-Druck Plexiglas Bauteil mit Gewinde Binder Jetting PMMA AE21

Component with thread, PMMA AE21

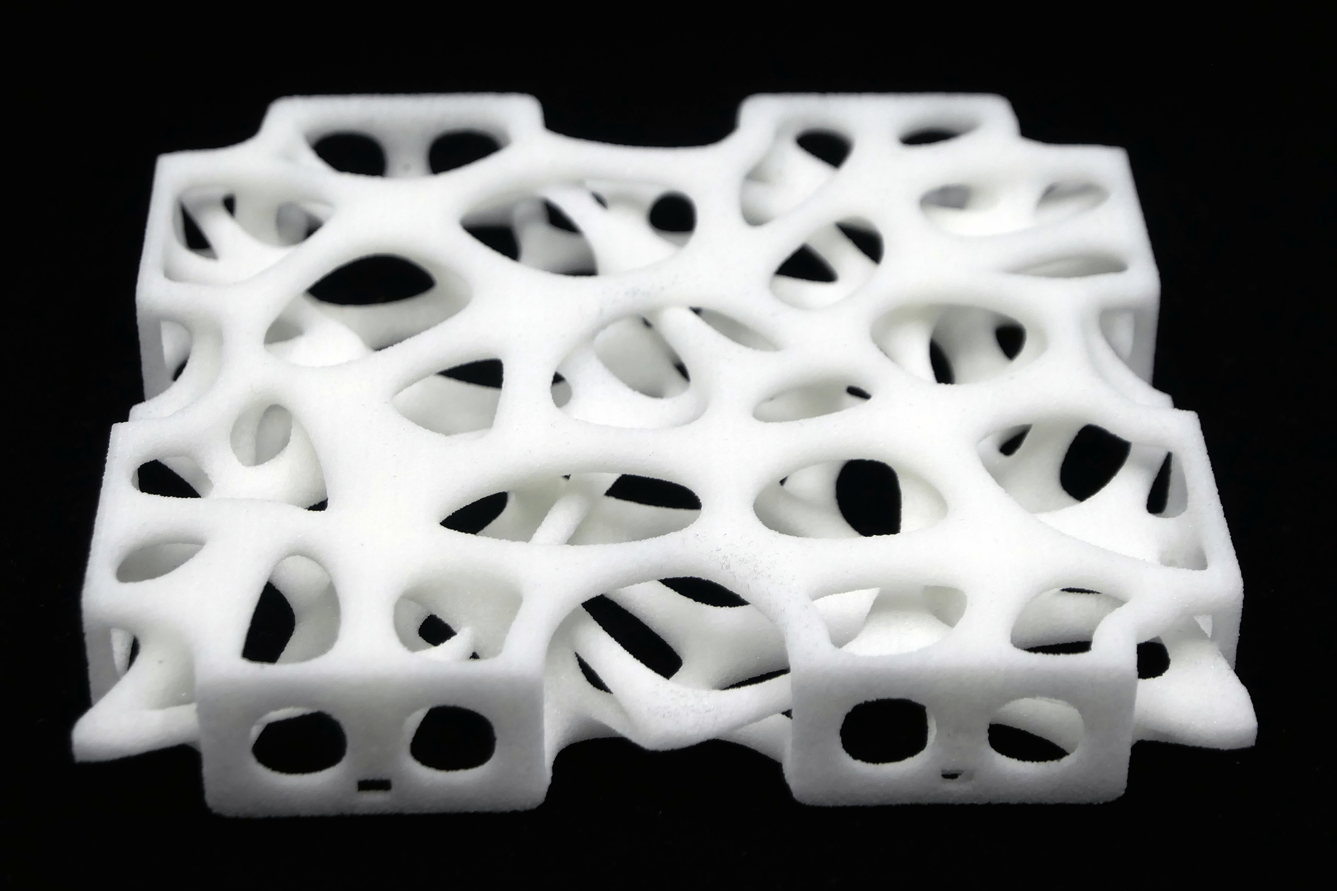

3D-Druck Plexiglas Bionische Struktur Binder Jetting PMMA AE21

Bionic structure made of PMMA AE12+

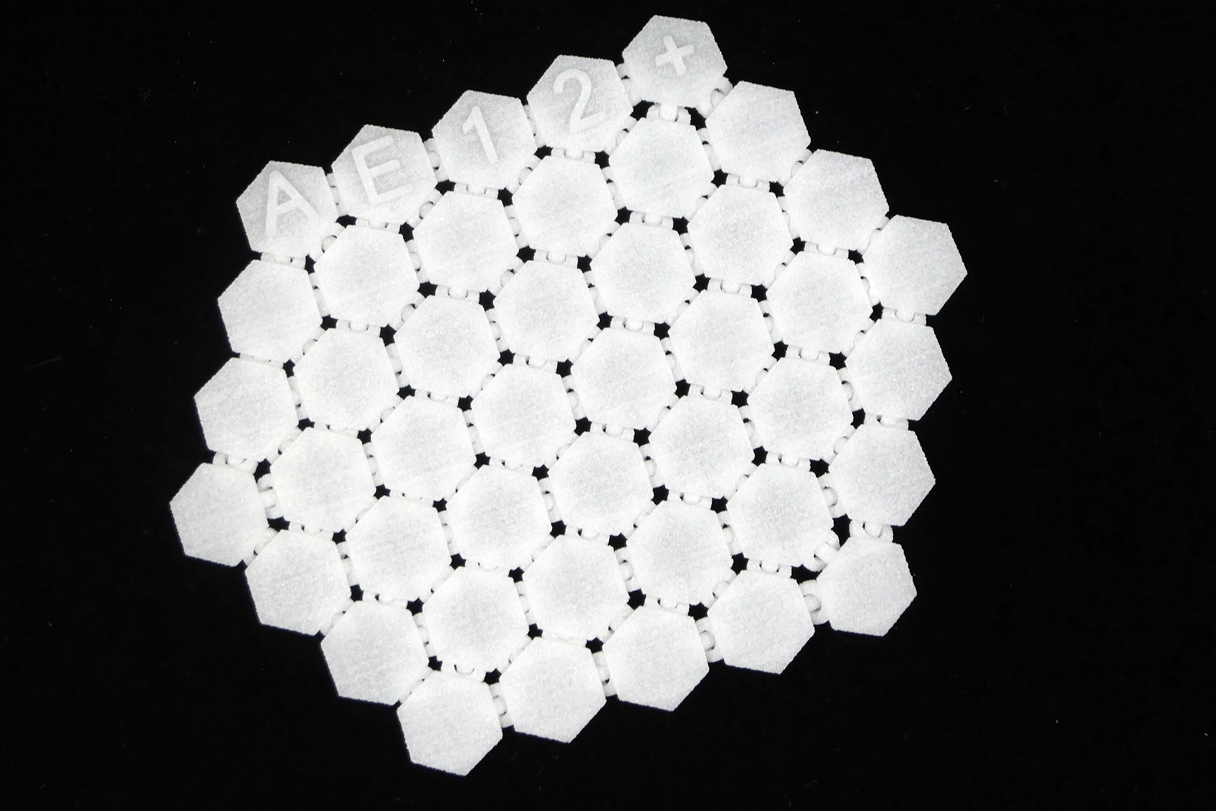

Fabric-like structure 3D printed with the PMMA AE12+.

3D-Druck Plexiglas Gewebe Binder Jetting PMMA AE12+
3D-Druck Plexiglas Gewebe Binder Jetting PMMA AE12+

Flexible bendable

If you have any questions about the materials, the design of components or generally about 3D printing, we are always happy to help. Give us a call or send us an e-mail.
